Advanced Online Binding. Integrated Book Production.
An integrated production-line configuration combining signature gathering, camera-assisted verification, stitching, perfect binding, trimming, and inline transfer.
Illustrative imagebooks per day
Stated daily capacity of the online binding line, as provided by the company. Individual machine speeds below are mechanical ratings and are not equivalent to daily output.
- Signa 5K-RH
Inline signature gatherer, 20 stations - Side stitching attachment
Hohner stitching heads - BSRS
Bindwel Signature Recognition System with camera - Reject gate
Diverts flagged books from the line - Freedom 5K
Inline automatic high-speed perfect binder - Book block feeder
For thread-sewn and stitched books - Trimit 50C
Inline high-speed three-knife trimmer - Inline conveyor
Transfer from binder to trimmer
Illustrative workflow
- Signature Gathering
- Signature Verification
- Stitching or Perfect Binding
- Three-Knife Trimming
- Inline Transfer
Illustrative workflow. Actual routing depends on the book and the production configuration.
Line capacity
| Stated daily capacity | 125,000 books |
|---|
Illustrative imageSigna 5K-RH
| Stations | 20 |
|---|---|
| Mechanical speed, binder-inline operation | 1,600–5,000 cycles/hour |
| Mechanical speed, pinning | 1,600–2,500 cycles/hour |
| Maximum gathering thickness | 50 mm |
Freedom 5K
| Clamps | 12 |
|---|---|
| Mechanical speed | 2,300–5,000 cycles/hour |
| Book spine thickness | 3–50 mm |
| Maximum book size | 380 × 250 mm (420 × 300 mm listed for direct clamp feeding) |
Book block feeder
| Maximum mechanical speed | 4,500 books/hour |
|---|---|
| Maximum book size | 300 × 460 mm |
| Maximum book thickness | 40 mm |
Trimit 50C
| Mechanical speed | 20–50 cycles/minute |
|---|---|
| Maximum untrimmed book size | 410 × 320 mm |
| Maximum trimmed book size | 400 × 310 mm |
Illustrative graphicSignature gathering
The Signa 5K-RH inline gatherer has 20 stations. Folded signatures are collected in sequence to form a book block that moves directly toward stitching or the perfect binder, with a maximum gathering thickness of 50 mm.
Illustrative imageCamera-assisted verification
The BSRS (Bindwel Signature Recognition System) uses a camera and is designed to identify gathering errors. The line includes a reject gate for books that are flagged. Like any inspection system, it supports quality control and does not remove the need for checks.
Illustrative imageStitching and pinning
A side stitching attachment with Hohner stitching heads allows stitched work on the line, and the gatherer supports pinning at a mechanical speed of 1,600–2,500 cycles per hour. The book block feeder handles thread-sewn and stitched books.
Illustrative graphicPerfect binding
The Freedom 5K is an inline automatic high-speed perfect binder with 12 clamps, handling spine thicknesses of 3–50 mm. It binds the gathered book block into an adhesive-bound book.
Illustrative imageAutomated trimming
The Trimit 50C is an inline high-speed three-knife trimmer running at 20–50 cycles per minute. It trims bound books on three sides, accepting untrimmed books up to 410 × 320 mm.
Illustrative graphicInline transfer

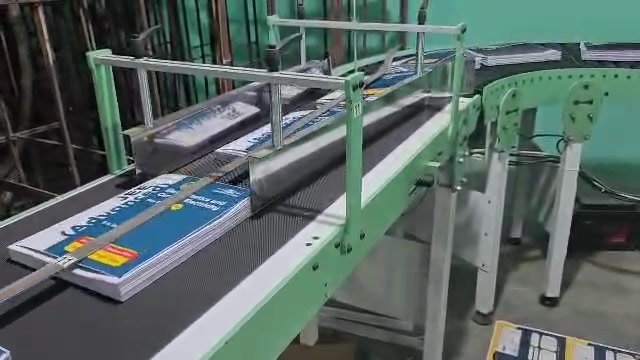

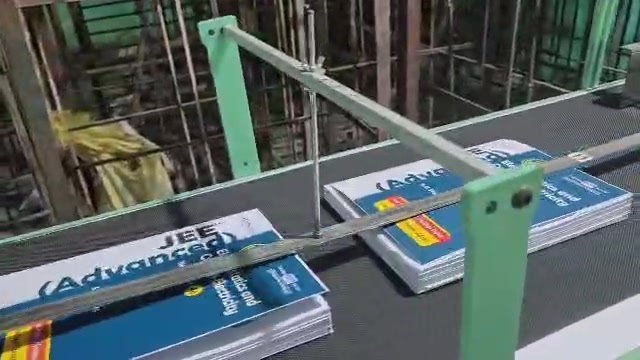

An inline conveyor carries books from the binder to the trimmer, connecting binding and trimming into a single continuous line.
Illustrative graphicBooks on the line
Photographs from the Neekunj facility. The machine shown is not identified by model, and the images are not confirmed to show the 2025 online binding line.
The company's document describes this installation as India's first machine with this combination of features. This statement comes from the company and has not been independently verified; it must be confirmed or removed before this page is published.
